Mian Purpose:
To wind various yarns automatically with stable feeding, precise forming and intelligent quality inspection.
Features:
This VCRO Plus intelligent automatic winder supports fully automatic bobbin handling and real-time yarn monitoring, featuring high winding efficiency, low energy consumption, easy maintenance and consistent cone package quality.
Tel:+86-13057251795
Mail: sales006@wxzhongyin.com
Specialty:
1.Flexible spindle quantity from 6 to 72 spindles, single/double magazine and spinning-linked types optional
2.Compatible with cotton, wool, linen, chemical fiber and blended yarns ranging from Ne6 to high counts
3.Wide winding speed range 400–2200m/min with stepless speed regulation
4.Complete intelligent systems: yarn clearer, tension closed-loop control, anti-girdle yarn, defect suction device
5.Full automatic bobbin conveying, high yarn picking success rate up to 50 heads per minute
6.Energy-saving design, compact layout and linkage function with spinning frames
Specification Table:
| Specification | Details |
|---|---|
| Layout | Single-sided spindle arrangement, left/right machine optional |
| Applicable yarn | Cotton, wool, linen, synthetic fiber, blended yarn, plied yarn |
| Yarn count range | Ne6 to super fine count |
| Winding speed | 400–2200m/min, stepless adjustable |
| Tube size | Length 180–230mm, diameter 32–43mm |
| Drive form | DC brushless motor driven drum, inverter negative pressure control |
| Splicer | Mesdan798Q Joint splicer, Aquasplicer |
| Yarn clearer | USTER/LOEPFE electronic yarn clearer |
| Yarn picking speed | 50 heads/min |
| Cone conicity | 3°30′, 4°20′, 5°57′ |
| Bobbin storage | 2 bobbins; Package storage: 4 packages |
| Bobbin delivery speed | 25m/min |
| Machine type | Spindles | Magazine | Power installed (72 spindles) | Overall dimension (72 spindles) | Bobbin processing mode |
|---|---|---|---|---|---|

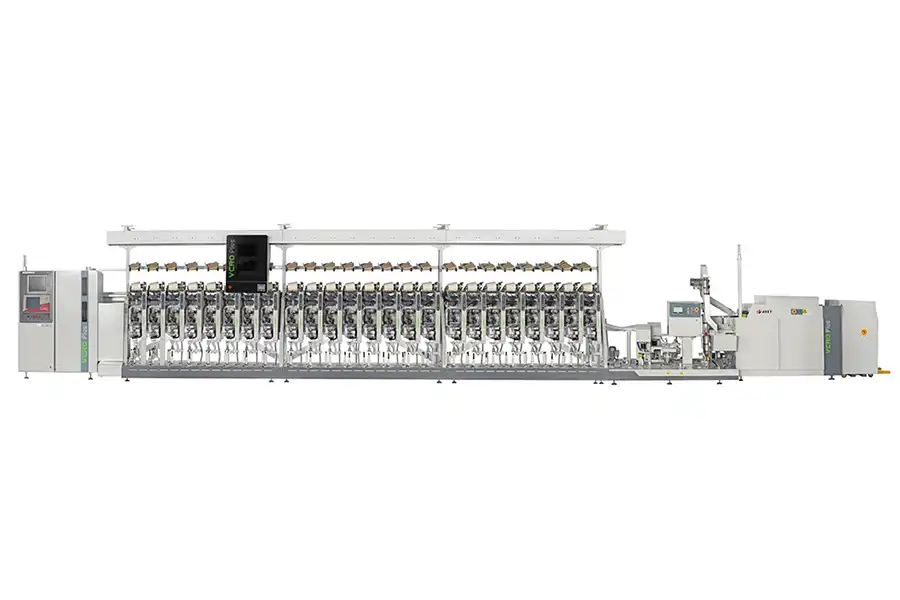

| VCRO PLUS | 6–72 | Single magazine | 35.95kW | 31080×1680×2780 | Single plug, double head picking |

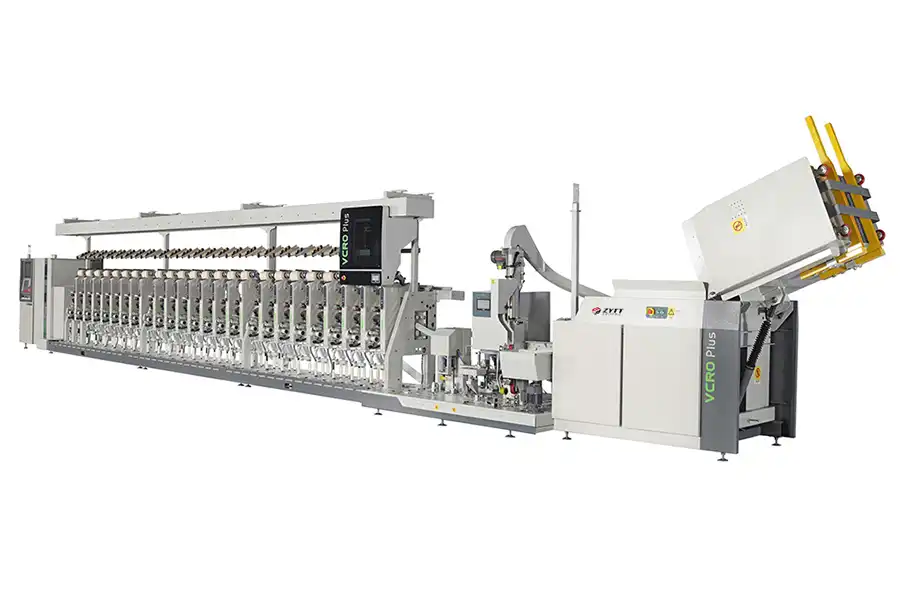

| VCRO-double magazine | 6–72 | Double magazine | 38.05kW | 30890×2580×2780 | Single/double plug, double/triple head picking |

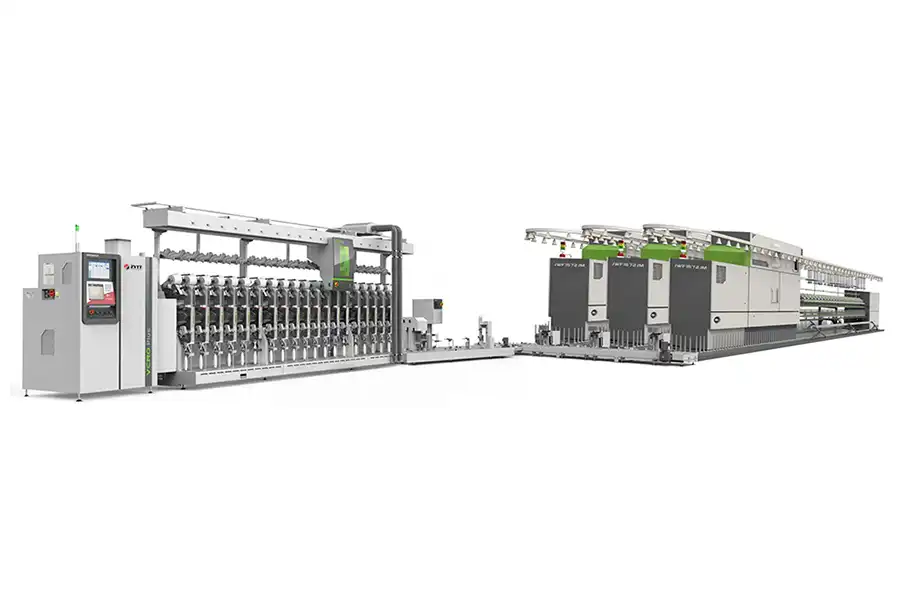

| Auto-winder multi-linked with spinning frame | 6–72 (increase by 2) | Single magazine | 35.35kW | 26480×6154×2780 (60 spindles) | Single/double head picking |
