Mian Purpose:
Split mother yarn into uniform monofilaments and wind evenly onto warp beams for warp knitting production.
Features:

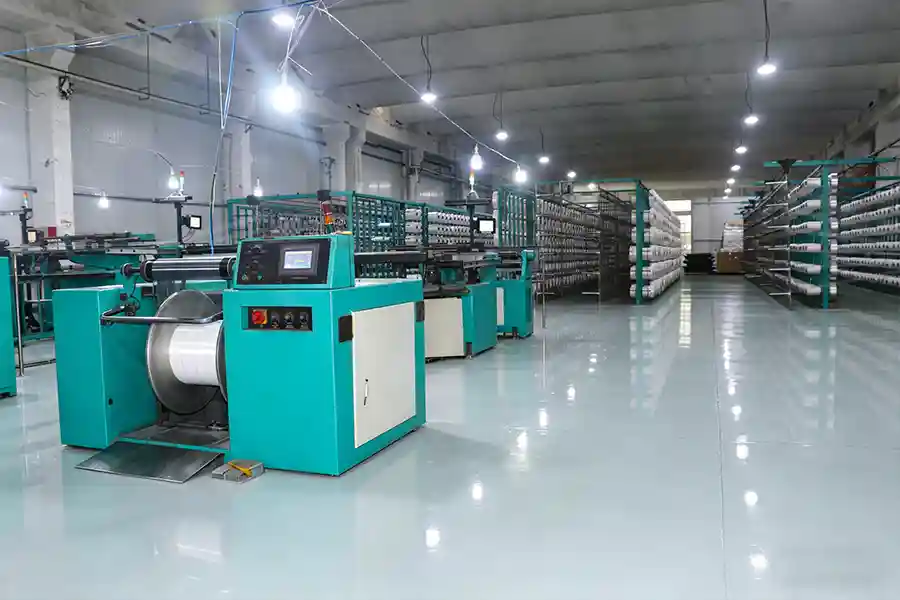

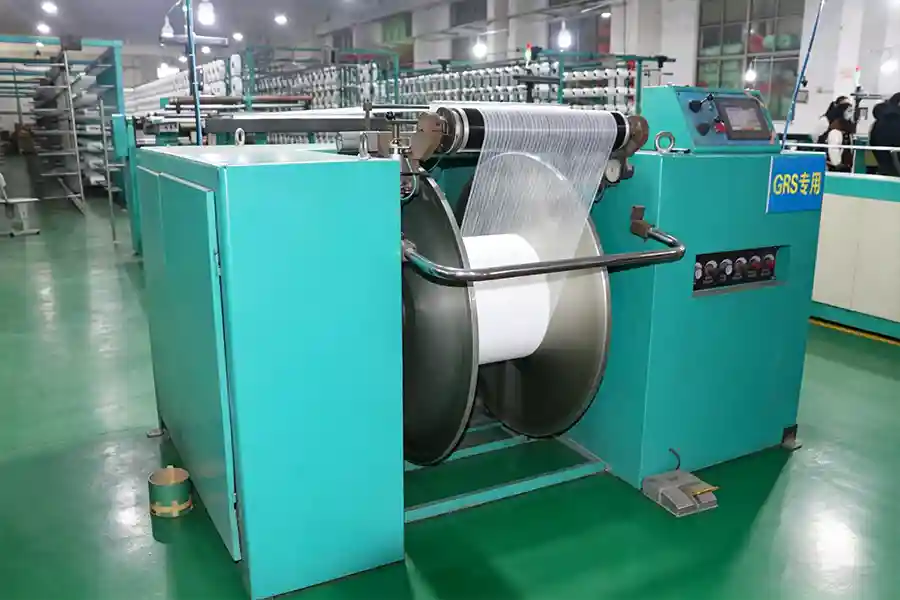

ZY21-40 Precise Split Yarn Warping Machine integrates yarn splitting and warping into one procedure, adopts full pneumatic beam clamping/lifting/braking structure, equipped with independent tension roller drive and camera yarn break auto-stop system, running at constant high speed with even yarn tension and stable winding quality.
Tel:+86-13057251795
Mail: sales006@wxzhongyin.com
Specialty:
1.Combine splitting and warping in one process to save labor, workshop space and reduce yarn waste
2.Max line speed up to 600 m/min with stable constant-speed winding controlled by frequency converter
3.Full pneumatic system for beam lifting, clamping and braking with short braking distance
4.Independent driving for creel and dual tension rollers to realize uniform tension of all yarn ends
5.Sanli camera auto-stop device for immediate halt once yarn breaks to avoid defective beams
6.Support customized yarn ends quantity based on customer production requirements
7.Compatible with 21-inch and 30-inch two sizes of warp beams
Specification Table:
| Item | Specification |
|---|---|
| Max Line Speed | 600 M/Min |
| Applicable Beam Size | 21″ , 30″ |
| Beam Control Mode | Pneumatic brake, pneumatic clamp, pneumatic lifting |
| Standard Yarn Creel Ends | 72 ends (customizable) |
| Tension Roller Quantity | 2 pcs |
| Tension Roller Power | 4KW |
| Creel Motor Power | 7.2KW |
| Main Motor Power | 5.5KW |
| Braking Distance | Less than 2 turns at 600 M/Min |
| Yarn Break Detection | Sanli camera stop motion device |
| Delivery Cycle | 60 days |
