Mian Purpose:
For bleaching and dyeing cotton, linen, wool, polyester and various cheese yarns.
Features:

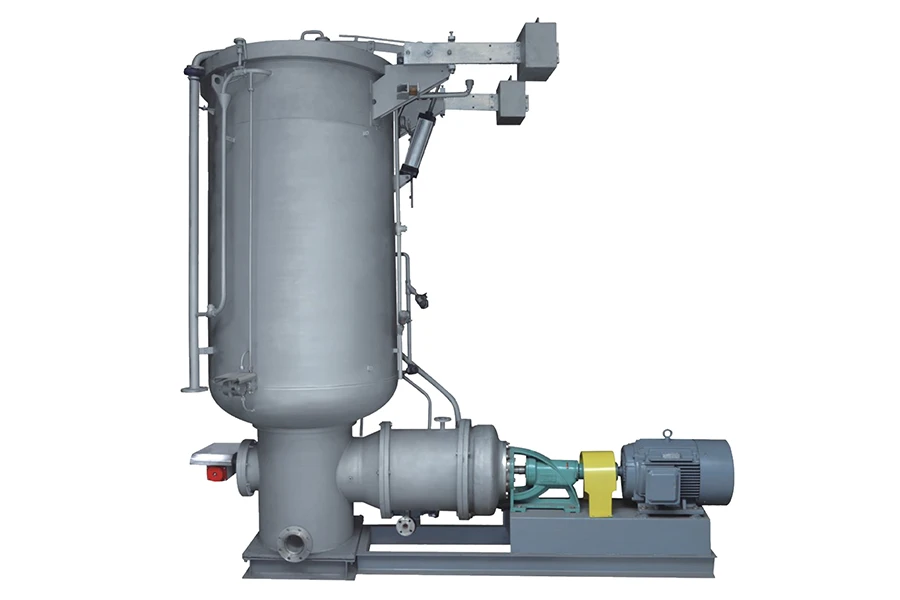

ZY252 & ZY241 high temperature high pressure cheese dyeing machines adopt full stainless steel anti-corrosion structure, supporting air-pad and full-filling two working modes, equipped PLC automatic circulation heating & cooling system, with optional auxiliary kier to shorten production cycle and realize uniform dyeing for multiple yarn materials.
Tel:+86-13057251795
Mail: sales006@wxzhongyin.com
Specialty:
1.Two working types optional: air-pad type (A) and full-filling type (F) to adjust bath ratio and save water & steam
2.Whole tank & pipeline made of SUS stainless steel, welded by imported automatic welding equipment, durable and anti-corrosion
3.PLC intelligent automatic control, auto heating, cooling, dosing and liquor circulation with stable running

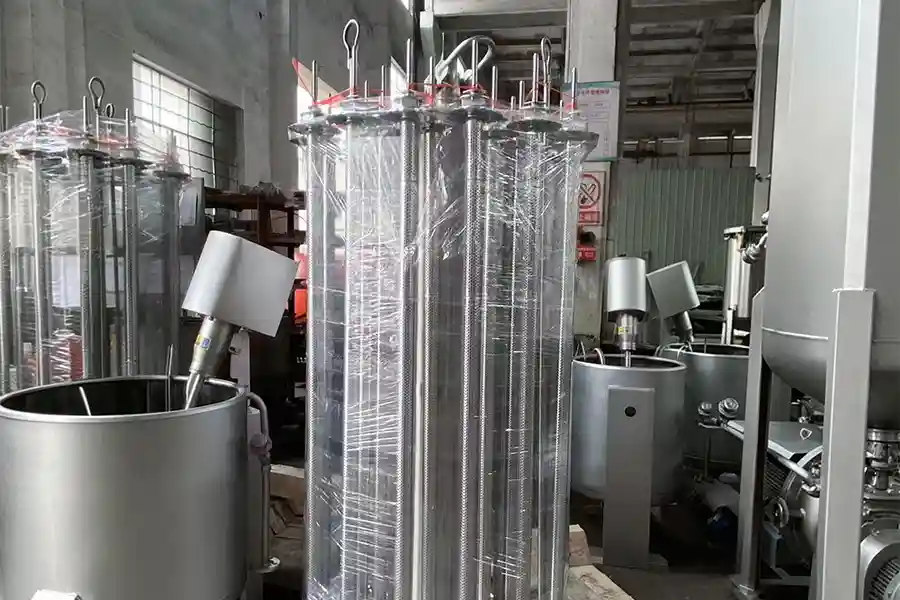

4.Standard spindle diameter 48mm, customized larger spindles available for different cheese sizes
5.Complete model range from small lab size to large industrial size, variable spindle quantity & loading capacity
6.Optional 1:1 auxiliary kier to shorten whole dyeing production cycle
7.Wide compatibility for cotton, polyester, nylon, wool, blended cheese yarns
Specification Table:
| Item | Specification |
|---|---|
| Machine Model | ZY252 / ZY241 HTHP Cheese Dyeing Machine |
| Working Type | Air-pad (A), Full-filling (F) |
| Applicable Yarn | Cotton, linen, wool, polyester, nylon, blended cheese yarn |
| Standard Spindle Dia. | 48mm (custom larger size available) |
| Standard Cheese Size | OD165mm × H152mm, single cheese weight 1.2kg |
| Design Pressure | 0.45Mpa |
| Design Temperature | 150℃ |
| Max Working Pressure | 0.4Mpa |
| Max Working Temperature | 130℃ |
| Power Supply | 380V 50Hz |
| Kier Diameter Series | 430 / 530 / 600 / 700 / 850 / 900 / 1050 / 1200 / 1300 / 1450 / 1500 / 1660 / 2050 / 2260 / 2560mm |
| Spindle Quantity Range | 4 ~ 164 spindles |
| Max Loading Capacity | 28.8 ~ 2361.6kg |
| Total Installed Power | 5.95 ~ 223.7kW |
| Optional Accessory | Auxiliary kier for short production cycle |
