Specialty:
1.Max 600 knots per minute, high knotting efficiency
2.Compatible with cotton, wool, silk, elastic yarns without adjustment
3.Dual independent yarn grippers for yarns of various thicknesses
4.Automatically matched nip pressure for different warp yarns
5.Adjustable multiple lease modes, support single & double knots
6.Auto stop & slow stop functions for stable operation
7.Reliable knot quality, greatly reduce loom downtime
Tel:+86-13057251795
Mail: sales006@wxzhongyin.com
Mian Purpose:
Automatically tie various yarns for weaving looms, speed up warp preparation with adjustable knot & lease modes to cut loom downtime and boost production efficiency.
Features:
Max 600 knots/min, multi-yarn compatible, adjustable lease & single/double knot modes, auto yarn pressure matching, stable knots, high efficiency.
Specification Table:
| Item | Parameter |
|---|---|

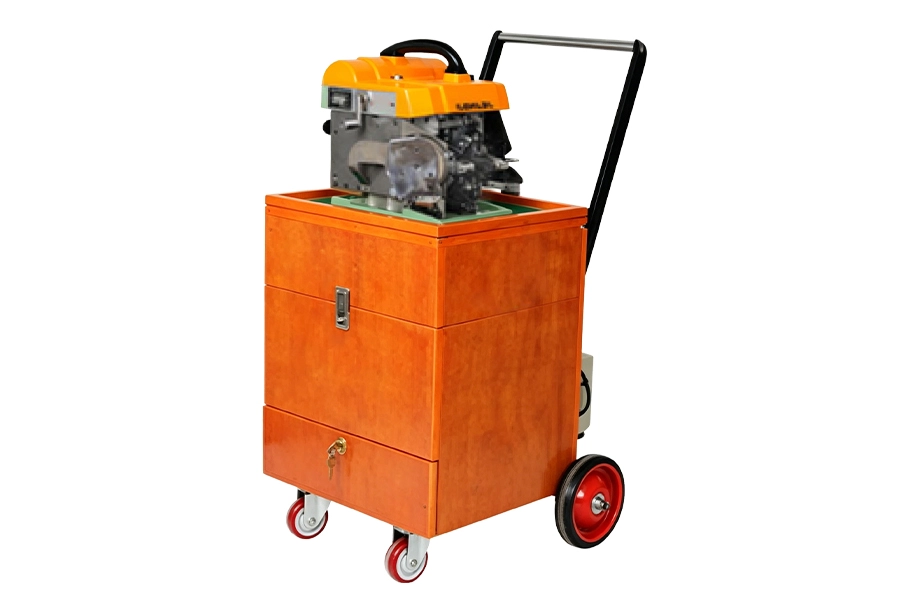

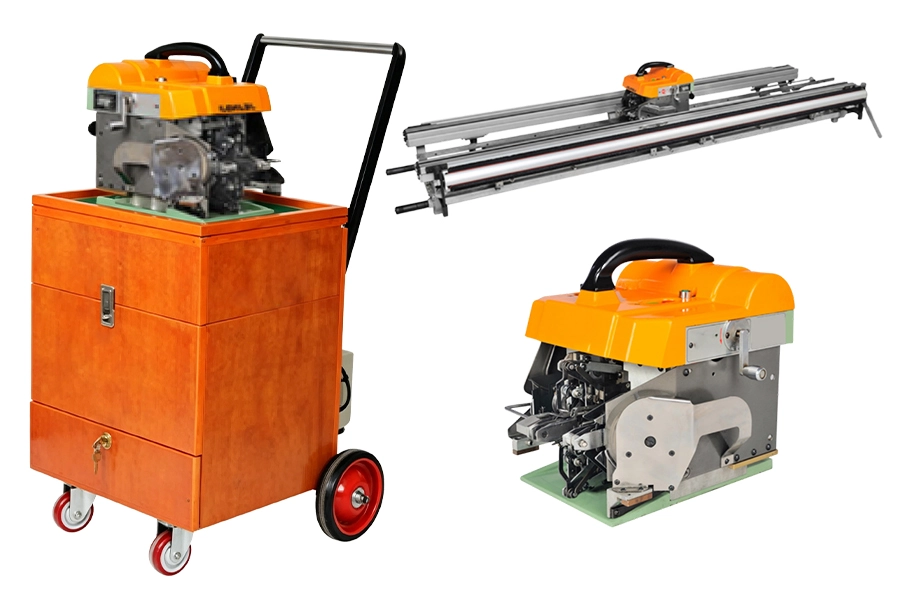

| Product Model | ZYTT-198 Basic Automatic Warp Knotting Machine |
| Max Knotting Speed | 600 knots / min |
| Applicable Yarn | Cotton, wool, silk, filament, deformed & elastic yarn |
| Yarn Gripper Configuration | Two independent yarn grippers |
| Auto Protection | 1~6 auto stops & 1~6 auto slow stops |

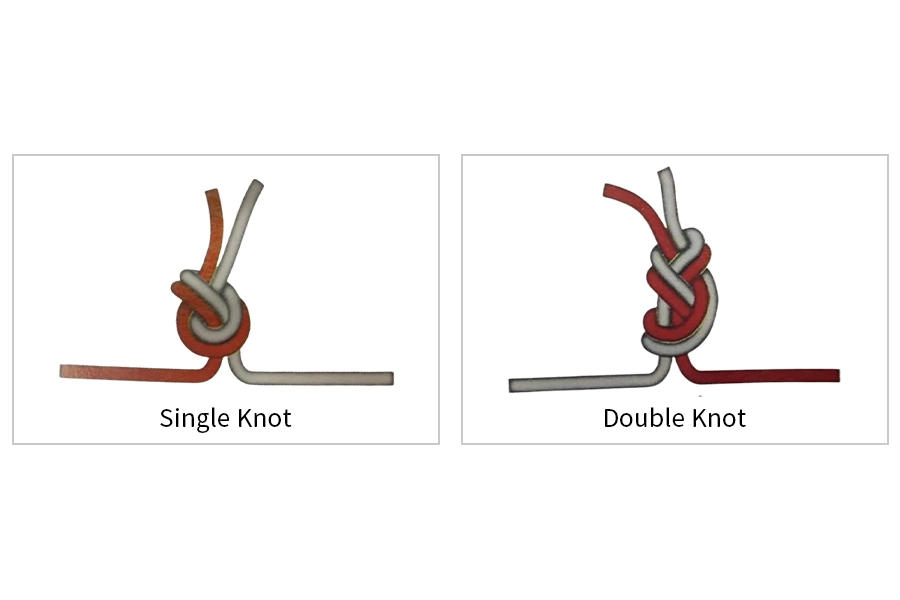

| Knot Types | Single knot, Double knot |
| Adjustable Lease Ratios | 1:1, 2:2, 3:3, 4:4, irregular lease |
| Warp Layer Modes | 4 types of upper/lower layer lease combinations |
| Split Device Control | Button-controlled upper & lower yarn splitting |
| Pressure Feature | Auto nip pressure matching warp thickness |
