Mian Purpose:

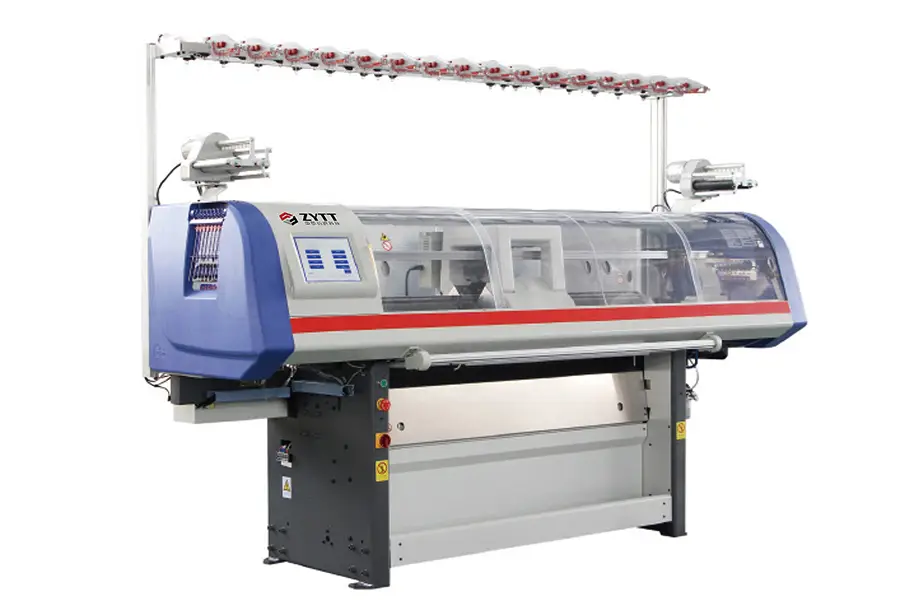

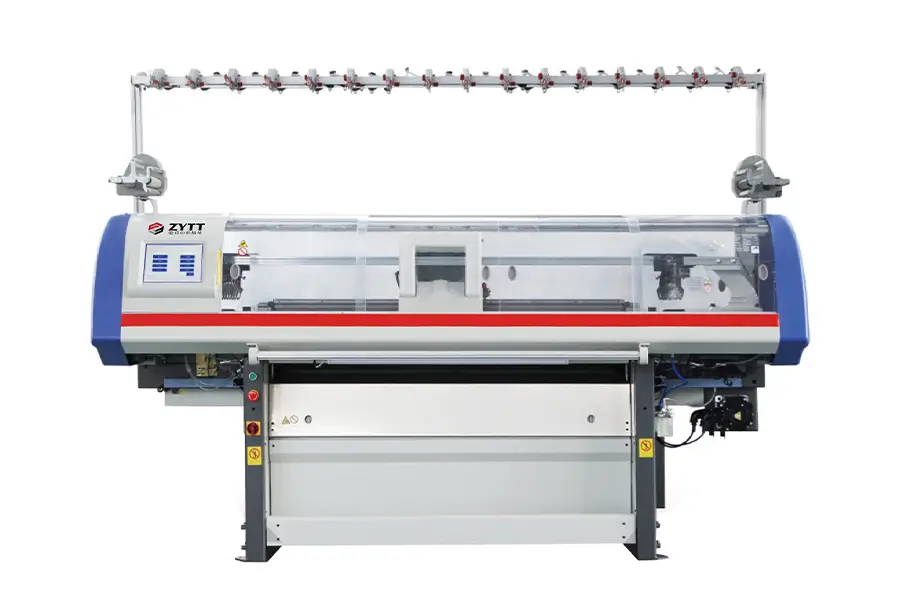

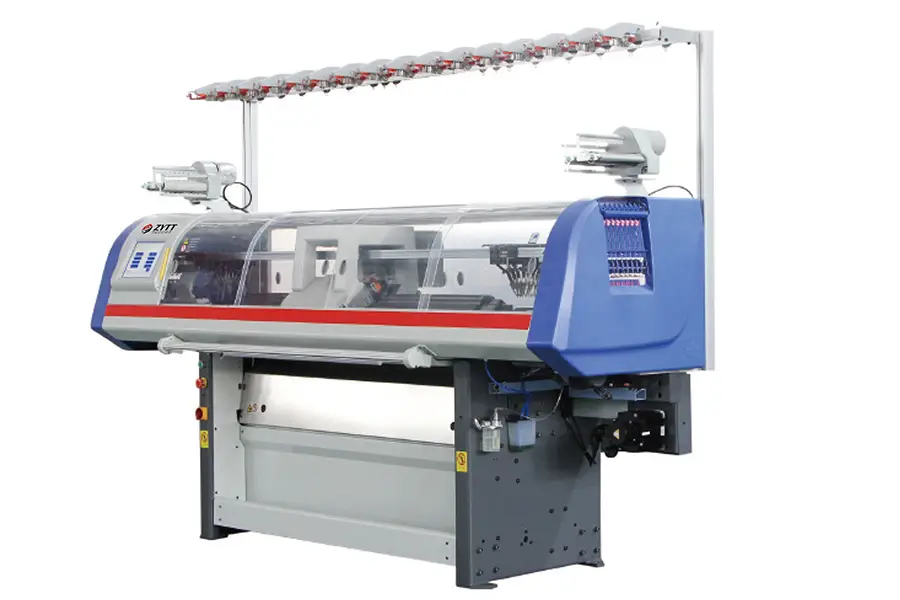

Cost-effective general computerized flat knitting machine for sweaters and knitwear, equipped with mature core technologies to realize stable, high-efficiency mass production with low cost.
Features:
Lightweight small carriage with servo drive for fast reversing; LED touch screen displays all knitting parameters; stable pulling system supports waste-free automatic bottoming; built-in scissors clip for auto yarn cutting, complete safety and fault alarm system.
Tel:+86-13057251795
Mail: sales006@wxzhongyin.com
Specialty:
1.Rapid carriage return & dynamic density control for higher efficiency
2.Mini lightweight carriage reduces inertia and speeds up reciprocation
3.Independent pushing needle cam shortens carriage reversing time
4.Stable take-down roller ensures uniform fabric tension
5.Zero waste auto bottoming function saves raw yarn
6.Infrared probe + full set of multi-functional alarm devices
7.Multiple widths, gauges and system configurations optional
8.Standard automatic yarn cutting scissors, reliable continuous operation
Specification Table:
| Machine Model | Gauge | Number of Carriages | Knitting Systems | Working Width (inch) | Max Running Speed (m/s) | Needle Bed Shaking Range | Rated Power |
|---|---|---|---|---|---|---|---|
| ZYA252SC | 5G/7G(V)/8G/9G/10G/12G(V)/14G(V)/16G/18G | 1 | 2 Systems | 52 | 1.4 | ±1 inch | 1.5KW |
| ZYA352SC | 5G/7G(V)/8G/9G/10G/12G(V)/14G(V)/16G/18G | 1 | 3 Systems | 52 | 1.4 | ±1 inch | 2.0KW |
| ZYA380SC | 5G/7G(V)/8G/9G/10G/12G(V)/14G(V)/16G/18G | 1 | 3 Systems | 80 | 1.4 | ±1 inch | 2.0KW |
| ZYA260C | 3G/3.5G | 1 | 2 Systems | 60 | 1.4 | ±1 inch | 2.0KW |
| Machine Model | Machine Dimension (L×W×H, mm) | Packing Dimension (L×W×H, mm) | Net Weight (kg) | Gross Weight (kg) |
|---|---|---|---|---|
| ZYA252SC | 2650×875×1850 | 2900×1050×1820 | 810 | 1000 |
| ZYA352SC | 3000×900×1900 | 3300×1050×1820 | 1050 | 1250 |
| ZYA380SC | 3720×900×1900 | 3900×1050×1820 | 1480 | 1730 |
| ZYA260C | 3100×1030×1900 | 3300×1220×1820 | 1360 | 1600 |
