Mian Purpose:

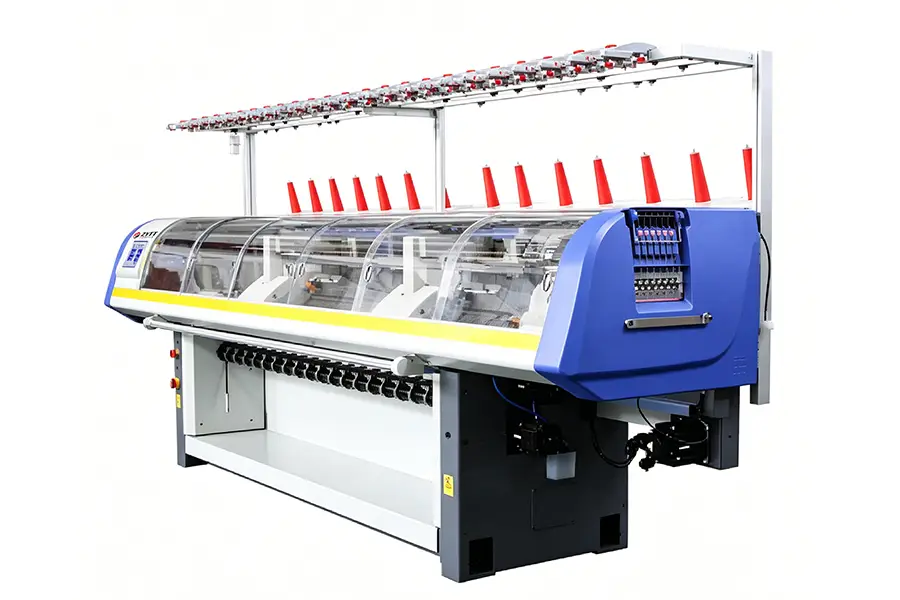

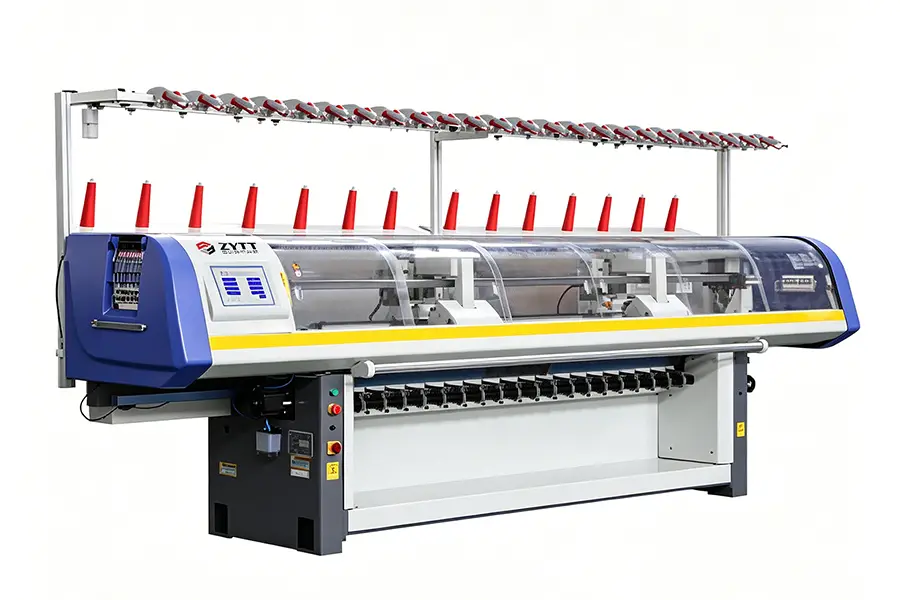

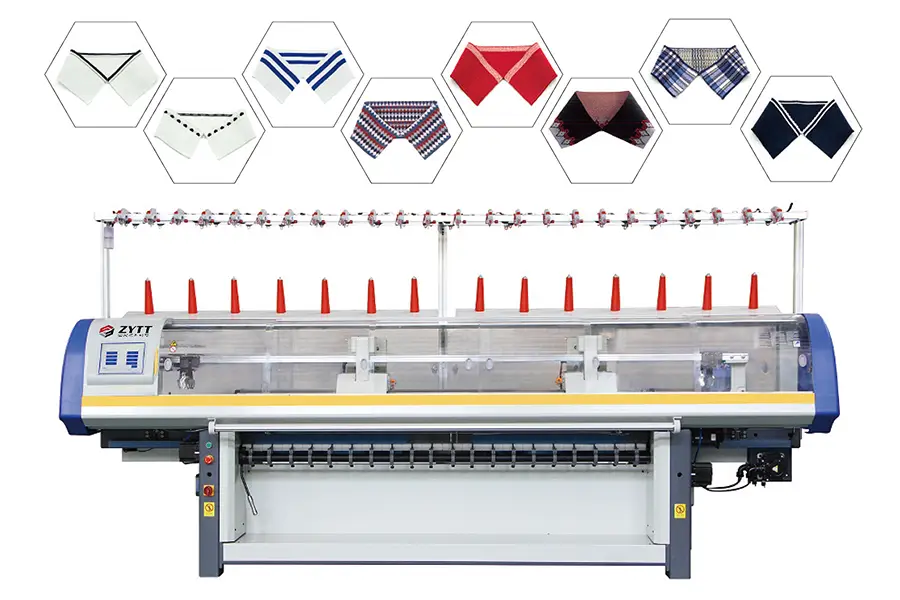

Dual-carriage tandem full jacquard flat knitting machine, designed for collars, cuffs, shaped panels and wide fabrics. Separable/combinable double carriages boost flexibility and single machine output, ideal for multi-style knitwear mass production.
Features:
Two independent carriages support separate 35-inch single-side knitting or combined 80-inch full-width knitting; ceramic wear-resistant top tensions with yarn knot detection; LED touch control with adjustable single-row density for multi-piece; thickened take-up roller ensures uniform tension for double fabrics, full set of safety & fault alarm devices.
Tel:+86-13057251795
Mail: sales006@wxzhongyin.com
Specialty:
1.Dual separable carriages: separate mode equals two single-system machines; combined for 80-inch full width production
2.Ceramic anti-static top tensions with easy threading and auto stop for yarn knots
3.Support different density setting for each piece, system supports networking expansion
4.Carriage movement and needle bed racking run simultaneously to raise efficiency
5.Optional heat-treated insert needle bed, replaceable single inserts to extend service life
6.Capable of knitting up to 7 pieces independently at one time to save raw materials
7.Complete protection: emergency stop, infrared safety cover, yarn break, needle crash, overload alarms
8.Three models with different configurations to meet basic, transfer and intarsia high-end production demands
Specification Table:
| Parameter Item | ZYTT-280T | ZYTT-280T(F) | ZYTT-280T |
|---|---|---|---|
| Gauge | 12G/14G/16G/18G | 12G/14G/16G/18G | 12G/14G/16G/18G |
| Number of Carriages | 2 | 2 | 2 |
| Knitting System | 1 System per carriage | 1 System per carriage | 1 System per carriage |
| Max Working Width | 80 inch | 80 inch | 80 inch |
| Max Running Speed | 1.4 m/s | 1.4 m/s | 1.4 m/s |
| Small Carriage | Standard | Standard | Standard |
| Infrared Probe | Standard | Standard | Standard |
| Motor Transfer | Not equipped | Standard | Standard |
| Needle Bed Ranging | ±1 inch | ±1 inch | ±1 inch |
| Dynamic Density | Standard | Standard | Standard |
| Lubrication System | None | None | Manual |
| Rated Power | 1.5KW | 1.5KW | 1.5KW |
| Top Tension Quantity | 24 PCS | 24 PCS | 24 PCS |
| Yarn Carrier Quantity | 12 PCS | 12 PCS | 16 PCS |
| Parameter Item | ZYTT-280T | ZYTT-280T(F) | ZYTT-280T |
|---|---|---|---|
| Machine Dimension (L×W×H, mm) | 3715×815×1850 | 3715×815×1850 | 3720×900×1900 |
| Packing Dimension (L×W×H, mm) | 3900×1050×1820 | 3900×1050×1820 | 3900×1050×1820 |
| Net Weight (kg) | 870 | 870 | 1350 |
| Gross Weight (kg) | 1190 | 1190 | 1600 |
| Item | ZYTT-280T | ZYTT-280T(F) | ZYTT-280T |
|---|---|---|---|
| Needle Selection System | Direct selection | Direct selection | 3-way selection |
| Transfer Function | No | Yes | Yes |
| Intarsia Knitting | No | No | Yes |
| Sinker System | No | No | Yes |
| Max Racking Range | 1 inch | 2 inch | 2 inch |
| Multi-piece Knitting | Supported | Supported | Supported |
| Needle Bed Type | Integral (insert optional) | Integral (insert optional) | Insert needle bed |
