Mian Purpose:

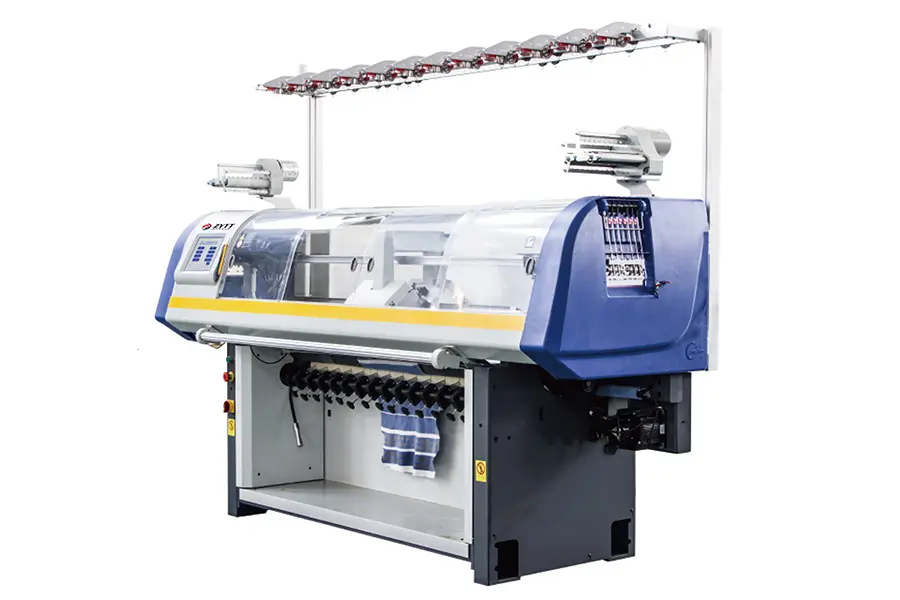

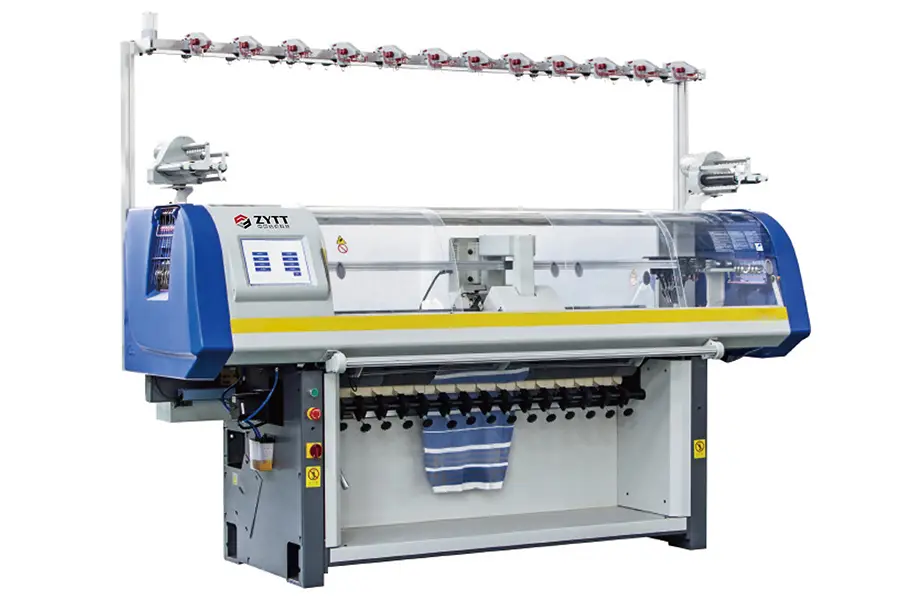

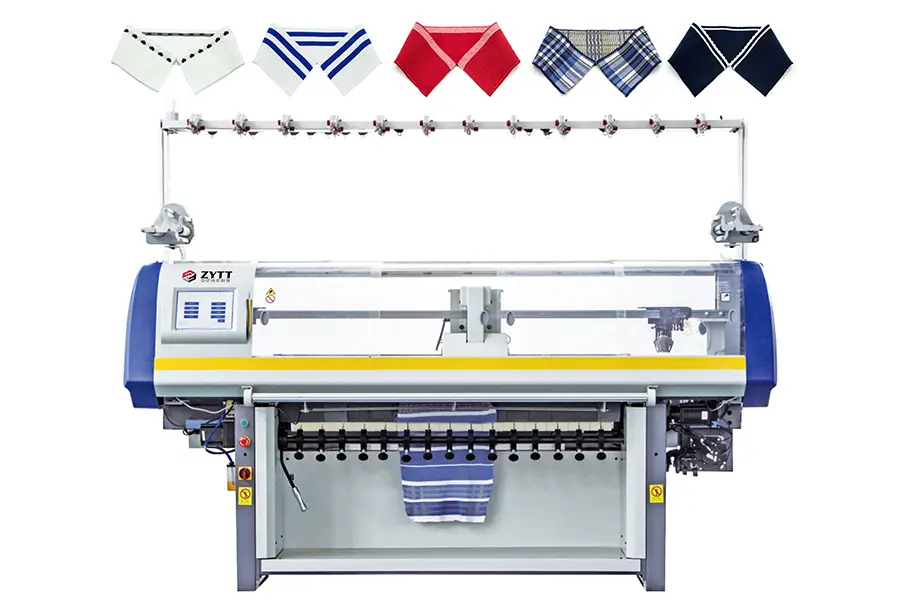

Specialized servo-driven full jacquard knitting machine for high-quality garment collars, supports multi-color jacquard collar mass production with automatic yarn changing and density adjustment.
Features:
Compact small carriage with direct 8-segment needle selection system; LED touch screen displays all knitting parameters; thickened large take-up roller delivers stable tension for double-sided fabrics; complete infrared safety and full fault alarm system.
Tel:+86-13057251795
Mail: sales006@wxzhongyin.com
Specialty:
1.Servo control with 6-color automatic yarn switching & adjustable dynamic density
2.High-frequency quenched needle plate and precise needles for premium collar fabric
3.Lightweight small carriage reduces operation cost and improves efficiency
Reinforced thick winding roller for stable pulling of double-sided structures
5.Equipped with lycra feeder and 12 yarn carriers for flexible yarn matching
6.Full set of alarms: yarn break, needle crash, overload, fabric reverse winding, etc.
7.Standard infrared safety cover and power-off memory function
8.Low power consumption (1.0KW), stable single-system high-speed operation
Specification Table:
| Item | ZYTT-1132 | ZYTT-131A |
|---|---|---|
| Gauge | 12G/14G/16G/18G | 12G/14G/16G/18G |
| Number of Carriages | 1 | 1 |
| Knitting Systems | 1 System | 1 System |
| Working Width | 52 inch | 52 inch |
| Max Running Speed | 1.4 m/s | 1.4 m/s |
| Needle Bed Shaking Range | ±1 inch | ±1 inch |
| Rated Power | 1.0KW | 1.0KW |
| Motor Transfer | Not equipped | Standard equipped |
| Small Carriage | Standard | Standard |
| Dynamic Density | Standard | Standard |
| Item | ZYTT-1132 | ZYTT-131A |
|---|---|---|
| Machine Dimension (L×W×H) | 2435×815×1850 mm | 2435×815×1850 mm |
| Packing Dimension (L×W×H) | 2650×1050×1820 mm | 2650×1050×1820 mm |
| Net Weight | 565 KG | 565 KG |
| Gross Weight | 730 KG | 730 KG |
